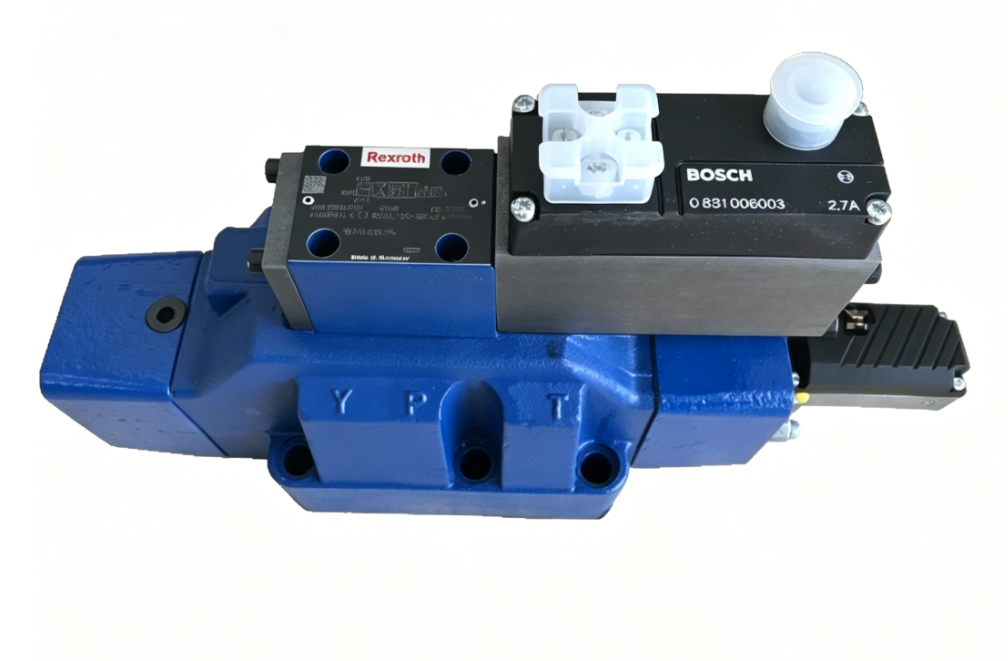

PROPORTIONAL DIRECTIONAL VALVE 0811404405 4WRL25V370M-30/G24Z4/M

Application Scenarios & Precautions

This high-flow regulating valve is strictly engineered for demanding electro-hydraulic closed-loop control systems requiring high dynamic response and precision, such as large scale die-casting machines, heavy metal presses, and marine positioning systems. It excels in managing precise position, velocity, and force profiles. For reliable deployment, ensuring top-tier fluid conditioning is mandatory; the fluid must be filtered to a minimum cleanliness level of ISO 4406 16/14/11 to prevent siltation of the integrated LVDT feedback position sensor and pilot control assembly. System designers must verify that the pilot oil pressure stays between 10 bar and 280 bar to ensure correct spool actuation. Additionally, avoid exceeding the 250 bar limit on the T and Y lines, as excessive backpressure will destabilize the pilot control stage and compromise loop stability.

Original price was: $5,485.00.Current price is: $3,898.00.

Share to :

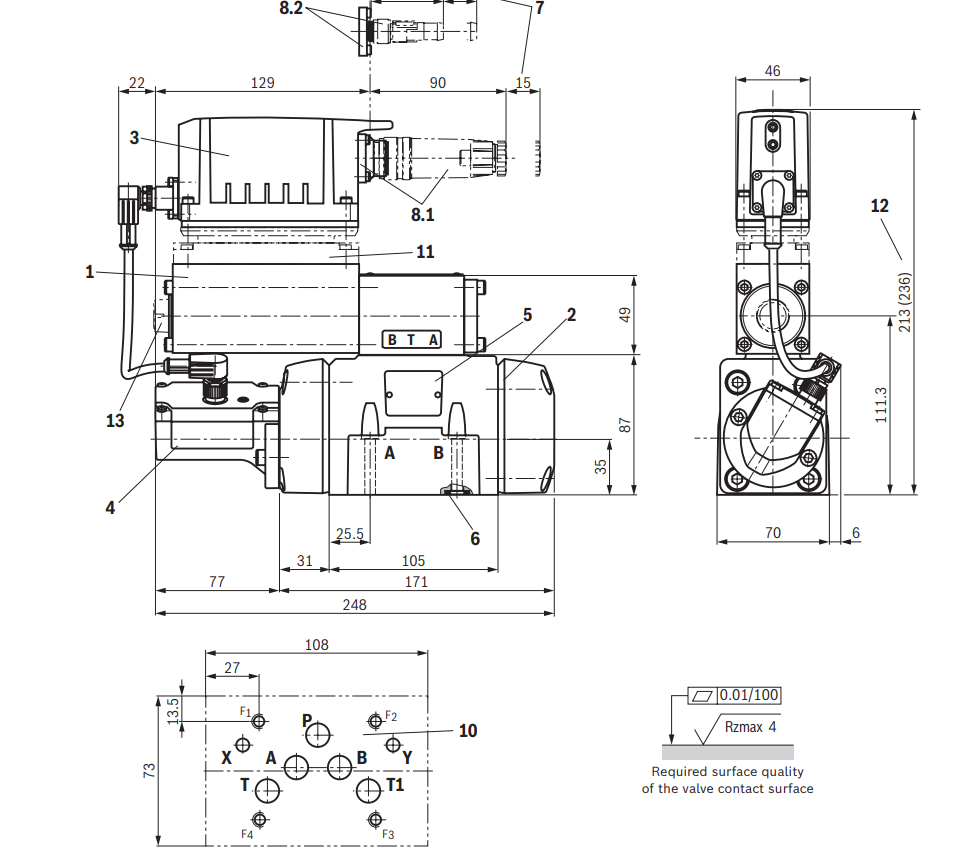

Parameter Specification Details / Code Meaning
Model Code 4WRL 25 V370M-30/G24Z4/M (Part Number: 0811404405)

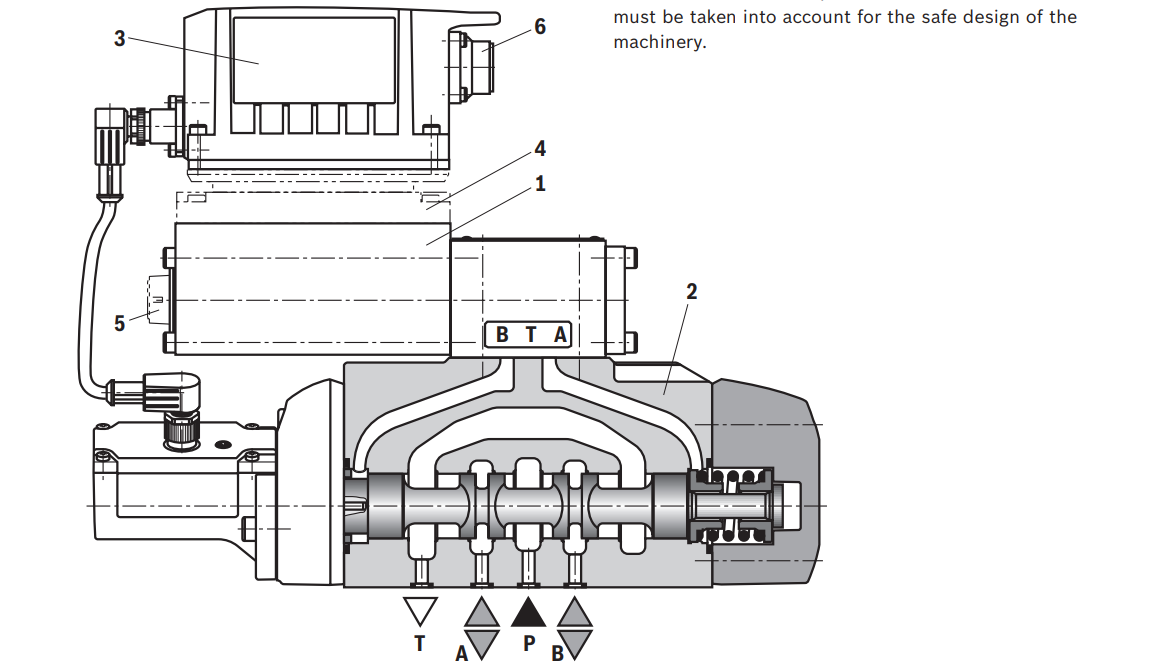

Valve Type 4-way pilot-operated proportional directional regulating valve
Position Feedback Equipped with electrical position feedback (LVDT DC/DC $\pm10\text{ V}$) for the main stage
Nominal Size Size 25 (NG25 / CETOP 08 / ISO 4401-08-08-0-05)
Spool Symbol V (4/3-way spool with progressive flow and zero-lap/critical overlap characteristic)
Nominal Flow Rate 370 L/min (at a nominal reference pressure drop $\Delta p = 10\text{ bar}$ across the valve)
Flow Curve M (Linear/Progressive optimized flow characteristic without overlap jump)
Component Series 30 (Series 3X: 30 to 39, retaining uniform mounting interfaces)
Supply Voltage G24 ($+24\text{ V}$ Direct Current / DC)
Electrical Connection Z4 (Connector 3-pole + PE according to EN 175301-803, plug included)
Seal Material M (NBR/Buna-N seals, fully compatible with standard mineral oils HL, HLP)
Max. Operating Pressure 350 bar (Ports P, A, B)
Max. Tank Backpressure 250 bar (Port T / Port Y for pilot fluid return)
Approximate Weight 11.0 kg

📦  Warranty&Reture Policy:

🛡️  1、One year warranty. If the product malfunctioned under proper usage per instructions manual within the warranty period, please contact us to obtain shipping instructions and send it back at your shipping costs.
🔍 2、14days evaluation and investigation takes placed after receiving yourreturn item.



                                         ❓ Frequently Asked Questions: Moog Proportional Valves

1. 🔍 Why is fluid cleanliness so critical, and what is the recommended standard?

First and foremost, Moog proportional and servo valves feature highly sensitive pilot stages, such as ServoJet® or nozzle-flapper systems, which operate with extremely tight tolerances. Consequently, even microscopic particulate contamination can jam spools, cause erratic control, or accelerate premature wear.

To prevent these issues, operators must maintain a fluid cleanliness level of ISO 4406 < 14/11 for an extended service life (or at least ISO 4406 < 16/13 for standard operations). In addition, you should always install a 10 $mu m$ absolute filter ($beta_{10} ge 75$) without a bypass line directly upstream from the valve inlet to catch harmful debris before it enters the system.

2. ⚡ What are the typical command signal options, and how do I prevent signal interference?

Generally speaking, modern Moog proportional valves (like the D661 series) utilize Integrated Electronics (OBE) and accept standard analog command signals, most commonly $pm$10 V or 4 to 20 mA. While voltage signals offer convenience for basic setups, current signals (4 to 20 mA) provide superior resistance to voltage drops and signal degradation during long-distance transmissions.

To ensure optimal performance, you must mitigate Electromagnetic Interference (EMI). Specifically, always use properly shielded cables and connect them correctly to the 6+PE electrical connector housing. Furthermore, keep all low-voltage signal wiring physically separated from high-voltage power lines to maintain absolute signal integrity.

3. 🛡️ What happens during a power failure, and how does the fail-safe logic work?

In the event of a sudden power loss or cable break, system safety becomes the top priority. Fortunately, Moog engineers built-in fail-safe centering logic layouts into these valves. Depending on your specific model configuration, internal spring forces or pilot pressure will automatically shift the valve spool to a predetermined safe position—such as a completely closed (neutral) position or a specific flow path.

Therefore, before initiating your very first system startup, you must verify the exact fail-safe code on your valve’s nameplate. By doing so, you ensure that your machinery’s emergency shut-down behavior aligns perfectly with your plant’s operational safety protocols.
