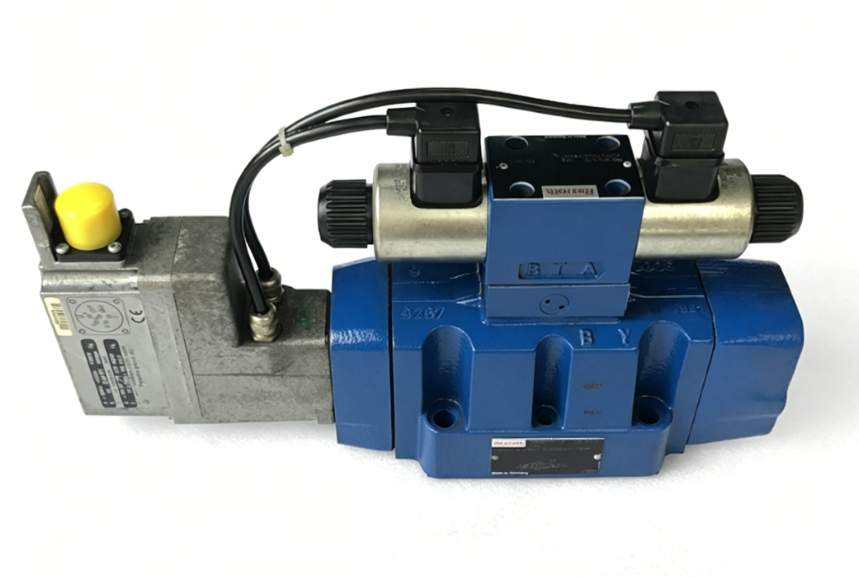

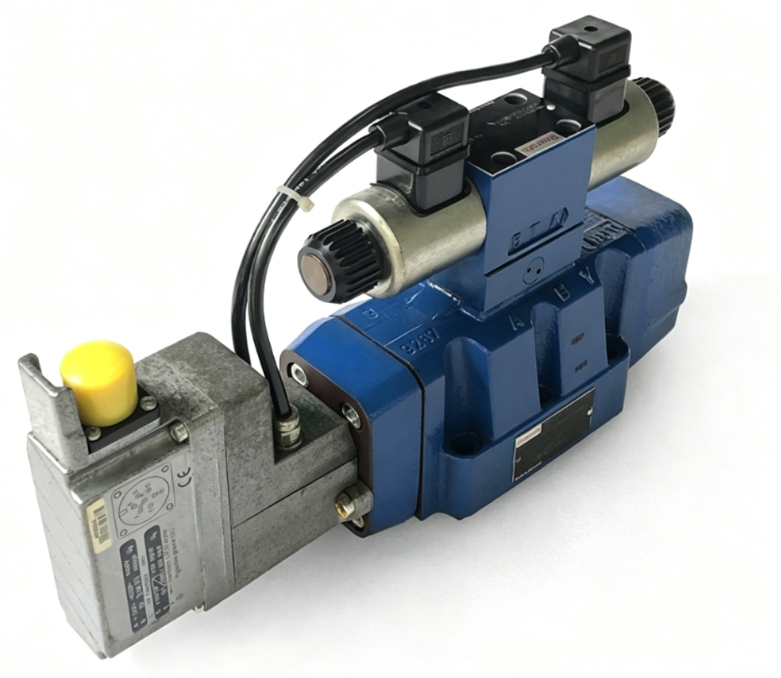

4WRBKE16W180SJ-10/6ZG24K31/A1D3M 0811404930 Servo Valve

Application Scenarios & Precautions

This valve is specifically tailored for high-demand electro-hydraulic production machinery requiring meticulous position, speed, and velocity tracking, making it highly prominent in plastics machinery (injection molding), die-casting installations, and automated wood/metal processing lines. For safe deployment, ensuring strict hydraulic oil conditioning is paramount; the system fluid must consistently maintain a minimum ISO 4406 16/14/11 cleanliness level to safeguard the factory-calibrated position-controlled main stage and inductive position transducer from particle contamination. Engineers must verify that the integrated K31 OBE receives a stabilized 24 VDC power supply to prevent regulation errors. Lastly, always route the external pilot return line Y directly to the tank at zero pressure, as sudden backpressure spikes will disrupt the valve’s precise electronic overlap compensation.

Original price was: $7,888.00.Current price is: $4,758.00.

Share to :

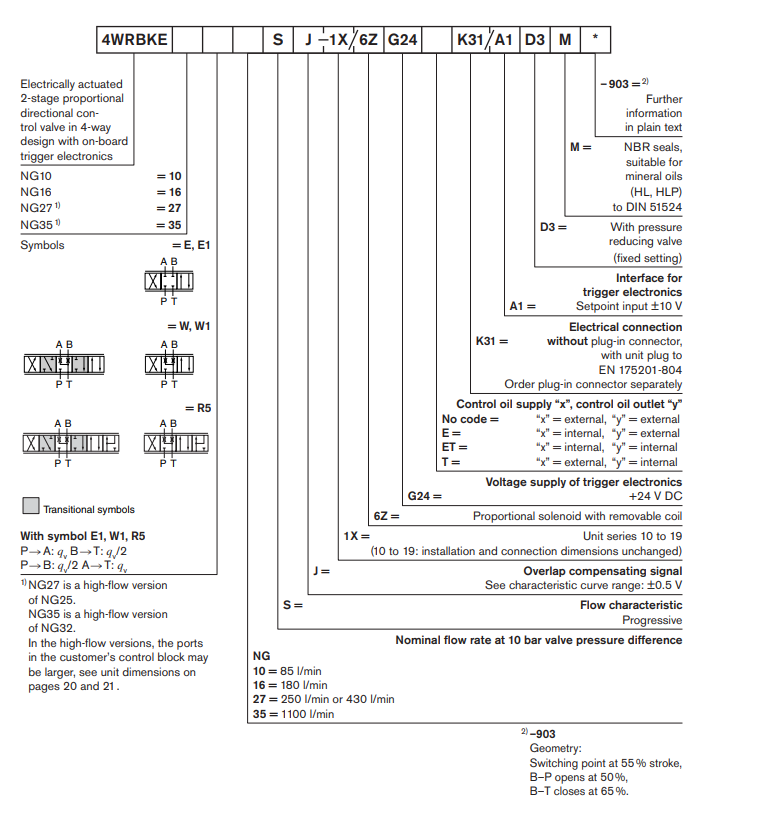

Parameter Specification Details / Code Meaning

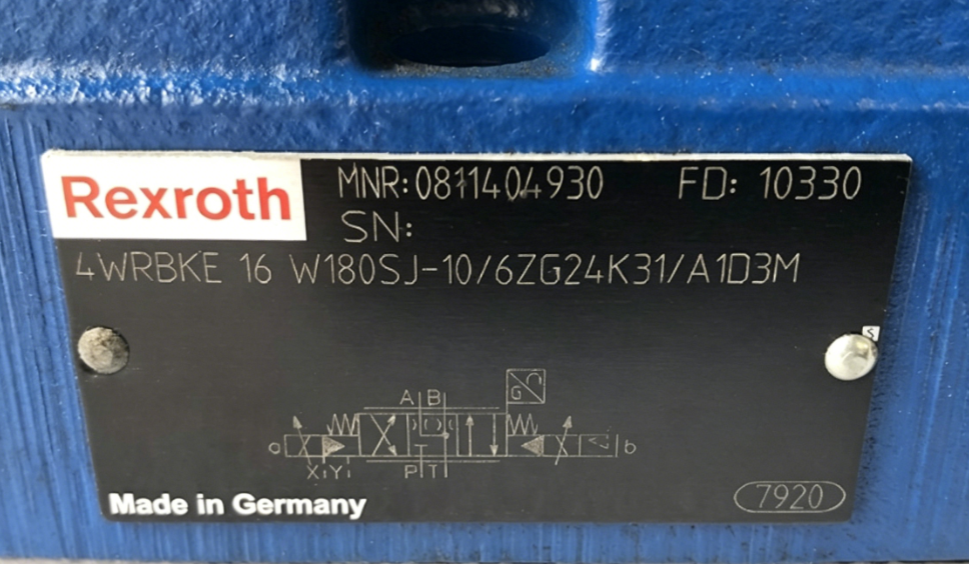

Model Code 4WRBKE16W180SJ-10/6ZG24K31/A1D3M

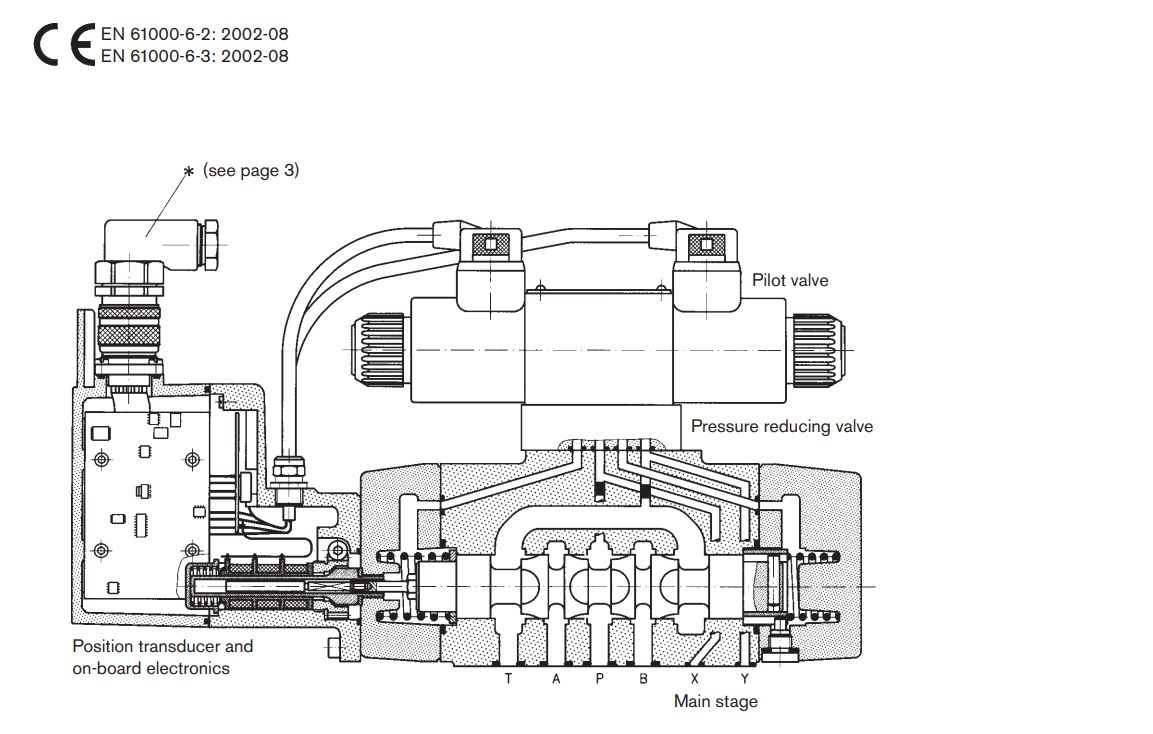

Valve Type 4WRBKE (2-stage pilot-operated proportional directional control valve with factory-calibrated electronic overlap compensation)

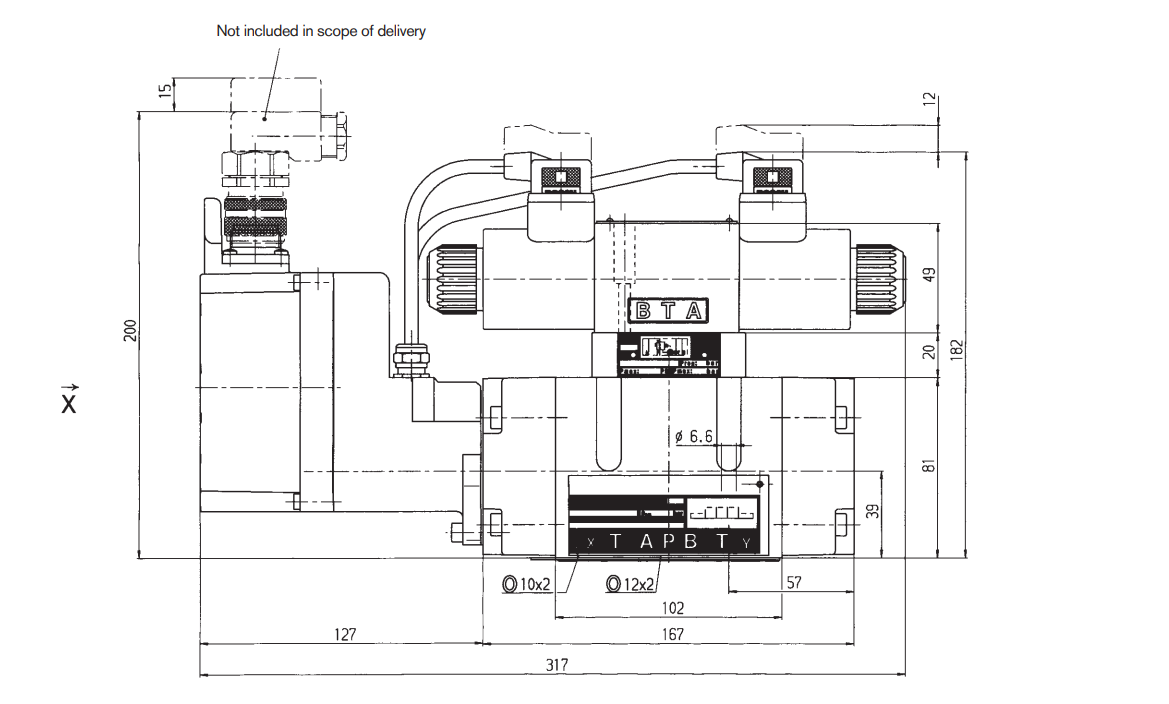

Nominal Size Size 16 (NG16 / CETOP 07 / ISO 4401-07-07-0-05 mounting interface)
Spool Symbol W1 (4/3-way asymmetric spool layout; full flow $P \rightarrow A$ / $B \rightarrow T$, half flow $P \rightarrow B$ / $A \rightarrow T$)
Nominal Flow Rate 180 L/min (At a standard reference pressure drop $\Delta p = 10\text{ bar}$ across the valve)
Flow Characteristic S (Progressive flow metering characteristic, specifically optimized for high loop stability)
Spool Special Features J (Spool with linear guidance and integrated anti-rotation mechanism)
Component Series 10 (Series 1X: 10 to 19, designating standard manufacturing configuration)
Pilot Control Stage 6 (Size 6 single-stage pilot valve optimized to prevent main stage instability)
Pilot Valve Centering Z (Spring-centered main control spool layout)
Supply Voltage G24 ($+24\text{ V}$ Direct Current / DC)
On-Board Electronics K31 (Integrated control electronics / OBE utilizing a standard 7-pole connector interface)
Command Value Input A1 (Analog voltage command signal: $0 \text{ to } \pm10\text{ V}$)
Pilot Oil Configuration D3 (Internal pilot oil supply via port P, external pilot oil return via port Y)
Seal Material M (NBR / Buna-N seals, fully compatible with standard mineral oils HL, HLP)
Max. Operating Pressure 350 bar (At main ports P, A, B)



📦  Warranty&Reture Policy:

🛡️  1、One year warranty. If the product malfunctioned under proper usage per instructions manual within the warranty period, please contact us to obtain shipping instructions and send it back at your shipping costs.
🔍 2、14days evaluation and investigation takes placed after receiving yourreturn item.



                                         ❓ Frequently Asked Questions: Moog Proportional Valves

1. 🔍 Why is fluid cleanliness so critical, and what is the recommended standard?

First and foremost, Moog proportional and servo valves feature highly sensitive pilot stages, such as ServoJet® or nozzle-flapper systems, which operate with extremely tight tolerances. Consequently, even microscopic particulate contamination can jam spools, cause erratic control, or accelerate premature wear.

To prevent these issues, operators must maintain a fluid cleanliness level of ISO 4406 < 14/11 for an extended service life (or at least ISO 4406 < 16/13 for standard operations). In addition, you should always install a 10 $mu m$ absolute filter ($beta_{10} ge 75$) without a bypass line directly upstream from the valve inlet to catch harmful debris before it enters the system.

2. ⚡ What are the typical command signal options, and how do I prevent signal interference?

Generally speaking, modern Moog proportional valves (like the D661 series) utilize Integrated Electronics (OBE) and accept standard analog command signals, most commonly $pm$10 V or 4 to 20 mA. While voltage signals offer convenience for basic setups, current signals (4 to 20 mA) provide superior resistance to voltage drops and signal degradation during long-distance transmissions.

To ensure optimal performance, you must mitigate Electromagnetic Interference (EMI). Specifically, always use properly shielded cables and connect them correctly to the 6+PE electrical connector housing. Furthermore, keep all low-voltage signal wiring physically separated from high-voltage power lines to maintain absolute signal integrity.

3. 🛡️ What happens during a power failure, and how does the fail-safe logic work?

In the event of a sudden power loss or cable break, system safety becomes the top priority. Fortunately, Moog engineers built-in fail-safe centering logic layouts into these valves. Depending on your specific model configuration, internal spring forces or pilot pressure will automatically shift the valve spool to a predetermined safe position—such as a completely closed (neutral) position or a specific flow path.

Therefore, before initiating your very first system startup, you must verify the exact fail-safe code on your valve’s nameplate. By doing so, you ensure that your machinery’s emergency shut-down behavior aligns perfectly with your plant’s operational safety protocols.
