| Product Type |

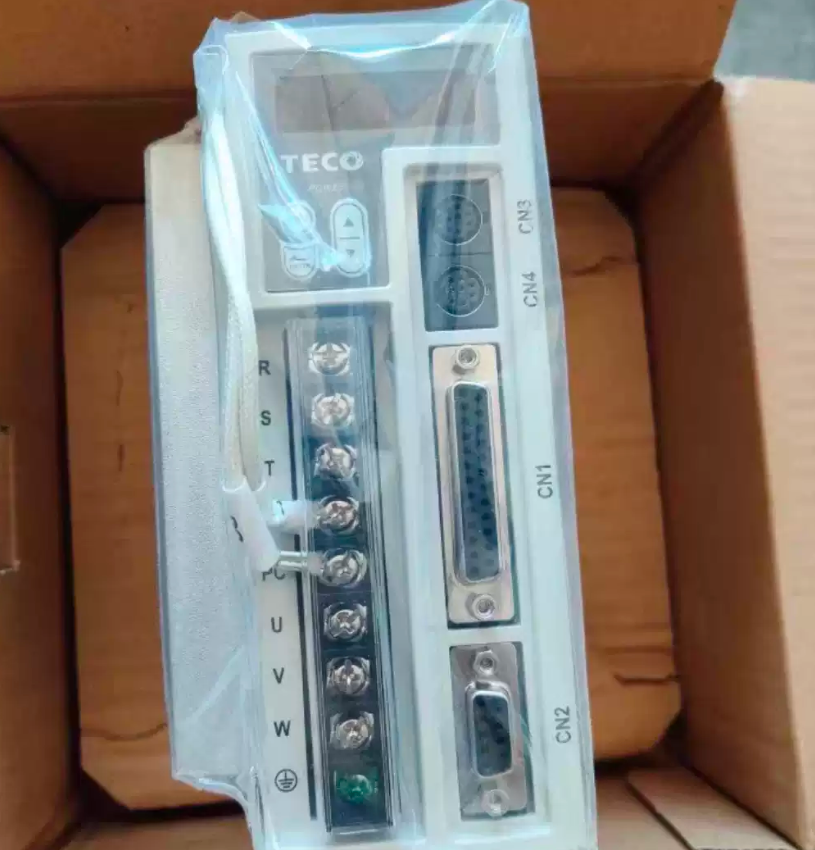

AC Servo Drive (Economy / High-Performance Type) |
| Brand |
TECO (Teco Electric & Machinery / 东元电机) |
| Model Number |
JSDEP-30A |
| Maximum Capacity |
1 kW (1000W) |
| Input Voltage |
AC 200V – 230V (Single-phase / Three-phase compatible) |
| Core Architecture |
Dual-core processing architecture (Computing core + Protection core) for high response and fast protection reaction |
| Control Modes |
Position / Speed / Torque / Point-to-Point Positioning (32-segment) / Dual-convergence mode switching |
| Encoder Compatibility |
Supports 2500 PPR incremental encoder (also supports 17-bit incremental encoder for high precision) |
| Communication Interface |
Built-in RS-232 / RS-485 communication interface (Supports Modbus protocol) |
| Built-in Functions |
Built-in regenerative braking function (Regeneration braking crystal) |
| I/O Configuration |
Multiple programmable multi-machine input/output (I/O) nodes |
| Physical Dimensions |
Height (H): 160 mm, Depth (H1): 152 mm, Width (W): 80 mm |
| Applicable Motor Power Range |
Typically matched with 750W to 1000W servo motors |
| Typical Applications |
Small CNC machine feed axes, printing machines, automated assembly lines, packaging machinery, and robotic arms |
