| Parameter | Specification Details |
| Product Series | D41FC Series (Proportional Directional Control) |
| Nominal Size | NG16 / CETOP 07 |
| Maximum Operating Pressure | 350 bar (5075 PSI) (Ports P, A, B, X) |
| Nominal Flow Rate | 200 L/min (at $\Delta p$ = 5 bar per control edge) |
| Spool Code | B31 (Overlap, 3-way functionality) |
| Electronics Type | Integrated Digital Onboard Electronics (OBE) |
| Command Signal | 0 to ±10 V (Voltage Input) |
| Pilot Inlet / Drain | Internal / External (Code 1) |
| Seal Material | NBR (Nitrile Rubber) |
| Electrical Connection | 6 + PE (Standard 7-pin connector) |
| Hysteresis | < 0.1% |
| Response Time | Approx. 4.1 ms (Step response) |
| Protection Rating | IP65 (acc. to EN 60529) |
| Weight | 12.5 kg |
| Ambient Temperature | -20 °C to +60 °C |

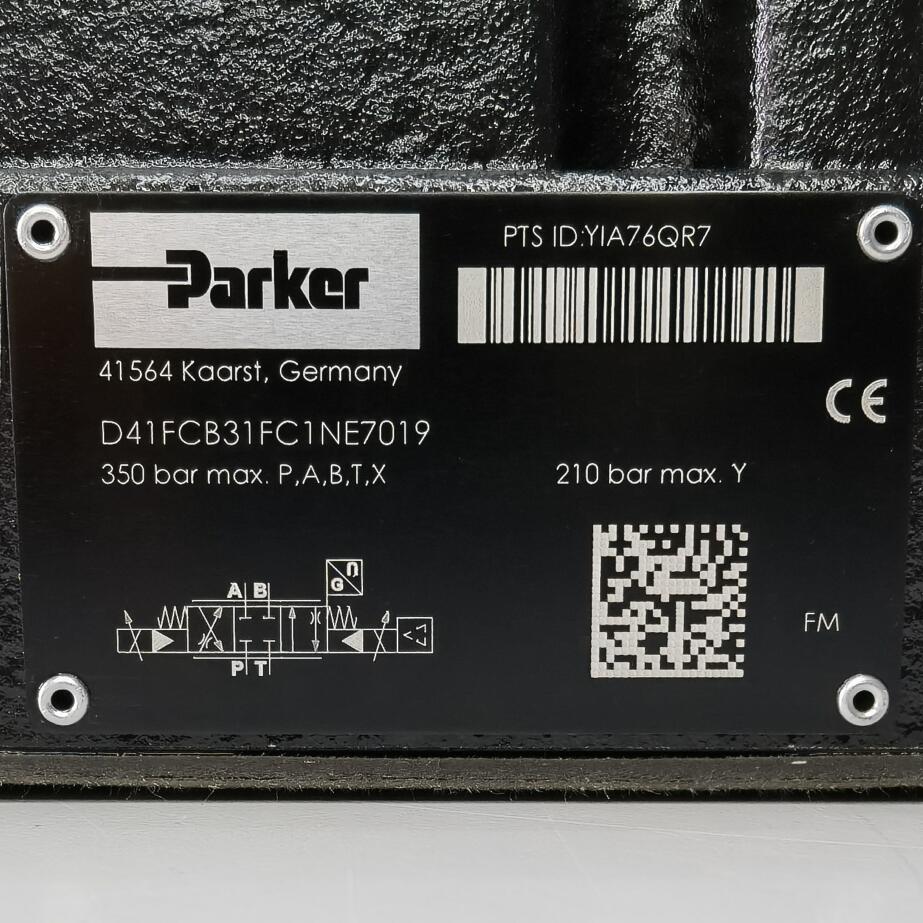

D41FCB31FC1NE70 Parker // Parker, Proportional Valve
Original price was: $3,650.00.$2,450.00Current price is: $2,450.00.
