Flow Rate: 200 L/MIN
Port Connection: NG16 / CETOP 07

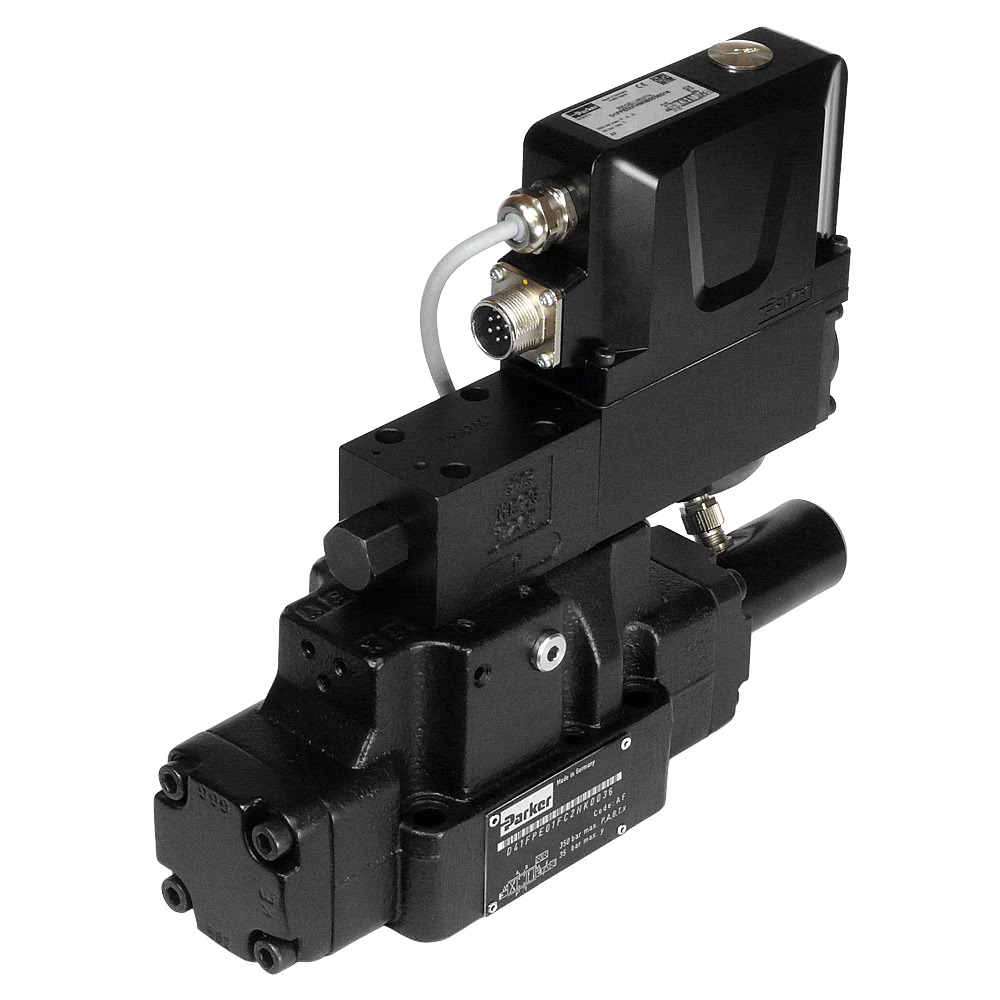

Product Series: Proportional DC Valve
Port Connection: NG10 / CETOP 05, NG16 / CETOP 07, NG25 / CETOP 08, NG32 / CETOP 10
Maximum Flow Rate: 600 L/MIN
Operation Type: Pilot
Spool Code: E52
Electronics Type: Onboard Electronics
Pressure Differential (bar): 5
Spool Type: Zerolap
Maximum Flow Rate: 600 L/min
Mounting Position: Horizontal mounting preferred
Flow Rate: 200.0 L/min
Pressure Differential: 5.0 bar
Defined Spool Position At Power Down: Center position
Pilot Inlet / Drain Locations: Internal/internal
Mounting Type: Subplate Mounting
Seal Material: NBR
Actuation Type: VCD®-actuator
Signal Input: 0-±10 V
For Fluid Type: Hydraulic Oil according to DIN 51524 … 535
Function: Proportional, 3-way
Flow Direction: 0-10 V = P-A
Connection Type: 6+PE + enable
Maximum Operating Pressure: 350 bar
Valve Option: Standard and regenerative valve function
Maximum Ambient Temperature: 60 °C
Minimum Ambient Temperature: -20 °C
Maximum Fluid Temperature: 60 °C
Minimum Fluid Temperature: -20 °C
Maximum Kinematic Viscosity: 400 cSt
Minimum Kinematic Viscosity: 20 cSt
Filter Efficiency Rating: ISO 4406; 18/16/13
Leak Rate: Depending on Spool
Seal Material: NBR
Mounting Style: DIN 24340 / ISO 4401 / CETOP RP121 / NFPA
Response Time: 13 ms
Hysteresis: < 0.1 %
Ingress Protection Rating: IP65 in accordance with EN 60529
Power Supply Voltage: 24 nominal (tolerance range 22 … 30), electric shut-off at < 19, ripple < 5 % eff., surge free V
Vibration Resistance: 10 Sinus 5…2000 Hz acc. IEC 60068-2-6 10 (RMS) Random noise 20…2000 Hz acc. IEC 60068-2-64 15 Shock acc. IEC 60068-2-27 g
Body Material: Cast Iron
Weight: 14.2 kg
Application: Industrial Hydraulic
Brand: Parker
Technology: Hydraulics
Division: Industrial Systems Division Europe
Valve Type: Proportional DC Valve
Media: Hydraulic Oil
