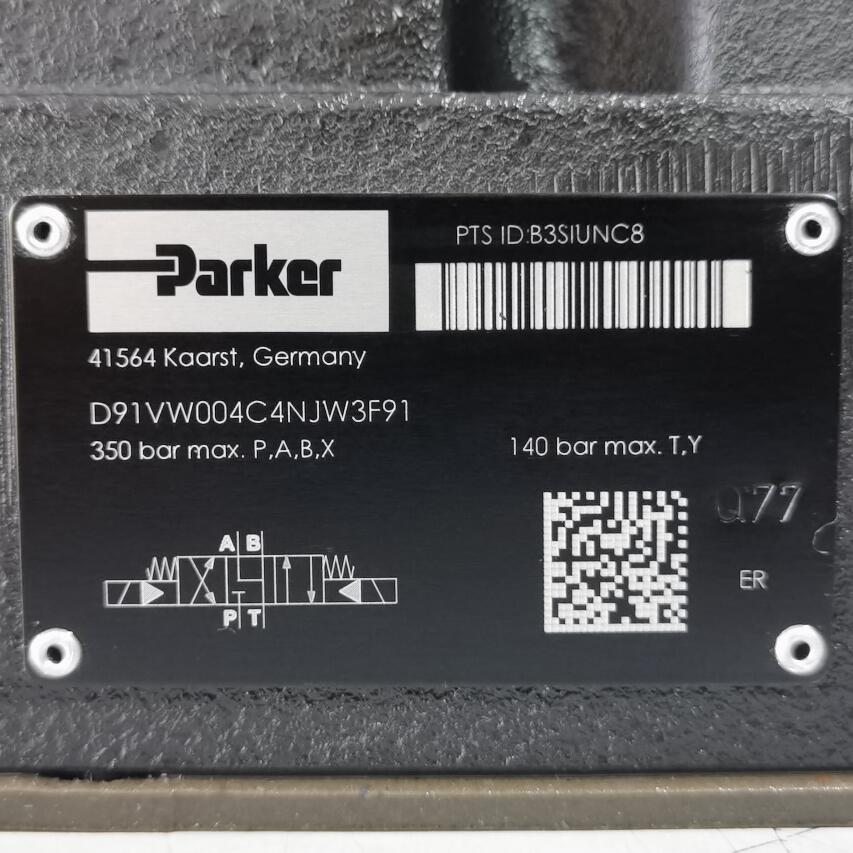

D91VW004C4NJW3F Parker // Parker, Hydraulic Valve

🇺🇸 EN ⌃

This valve is designed for industrial axes that demand both high flow capacity and servo-level precision:

Synchronized Cylinder Control: Ideal for systems where multiple cylinders must move in perfect synchronization (e.g., large press brakes or lifting platforms).
High-Speed Injection Molding: Managing the velocity and pressure transition phases in large plastic injection machines.

Original price was: $4,455.00.Current price is: $2,858.00.

Share to :

Parameter	Specification Details
Product Series	D41FP Series (DFplus High Dynamics)
Nominal Size	NG16 / CETOP 07
Max Operating Pressure	350 bar (5075 PSI)
Nominal Flow Rate	200 L/min (at $\Delta p$ = 5 bar per control edge)
Maximum Flow Rate	600 L/min
Spool Design	Zerolap (Code E52 – for closed-loop control)
Actuation Type	VCD®-actuator (Voice Coil Drive)
Command Signal	0 to ±10 V (Voltage Input)
Pilot Inlet / Drain	External / Internal (Code 5)
Response Time	Approx. 13 ms (Step response 0–100%)
Hysteresis	< 0.1 %
Electronics Type	Integrated Digital Onboard Electronics (OBE)
Seal Material	NBR (Nitrile Rubber)
Protection Rating	IP65 (acc. to EN 60529)
Weight	14.2 kg
Fail-Safe Position	P-B / A-T (Spool position at power down)
