                                         ❓ Frequently Asked Questions: Moog Proportional Valves

1. 🔍 Why is fluid cleanliness so critical, and what is the recommended standard?

First and foremost, Moog proportional and servo valves feature highly sensitive pilot stages, such as ServoJet® or nozzle-flapper systems, which operate with extremely tight tolerances. Consequently, even microscopic particulate contamination can jam spools, cause erratic control, or accelerate premature wear.

To prevent these issues, operators must maintain a fluid cleanliness level of ISO 4406 < 14/11 for an extended service life (or at least ISO 4406 < 16/13 for standard operations). In addition, you should always install a 10 $mu m$ absolute filter ($beta_{10} ge 75$) without a bypass line directly upstream from the valve inlet to catch harmful debris before it enters the system.

2. ⚡ What are the typical command signal options, and how do I prevent signal interference?

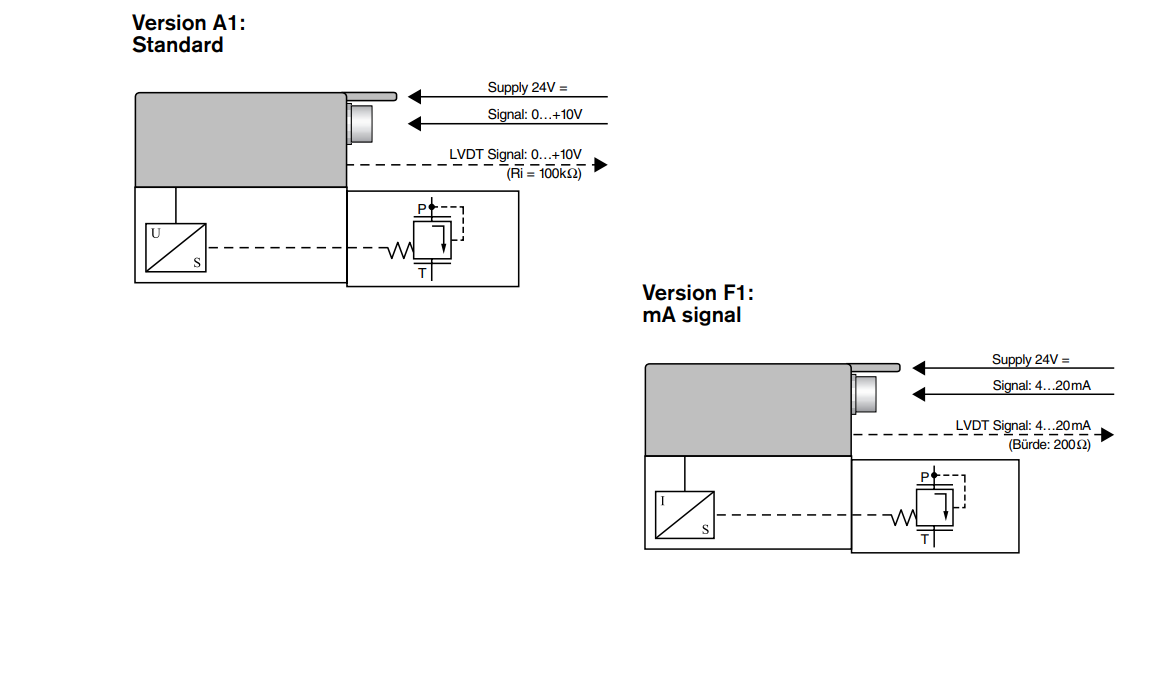

Generally speaking, modern Moog proportional valves (like the D661 series) utilize Integrated Electronics (OBE) and accept standard analog command signals, most commonly $pm$10 V or 4 to 20 mA. While voltage signals offer convenience for basic setups, current signals (4 to 20 mA) provide superior resistance to voltage drops and signal degradation during long-distance transmissions.

To ensure optimal performance, you must mitigate Electromagnetic Interference (EMI). Specifically, always use properly shielded cables and connect them correctly to the 6+PE electrical connector housing. Furthermore, keep all low-voltage signal wiring physically separated from high-voltage power lines to maintain absolute signal integrity.

3. 🛡️ What happens during a power failure, and how does the fail-safe logic work?

In the event of a sudden power loss or cable break, system safety becomes the top priority. Fortunately, Moog engineers built-in fail-safe centering logic layouts into these valves. Depending on your specific model configuration, internal spring forces or pilot pressure will automatically shift the valve spool to a predetermined safe position—such as a completely closed (neutral) position or a specific flow path.

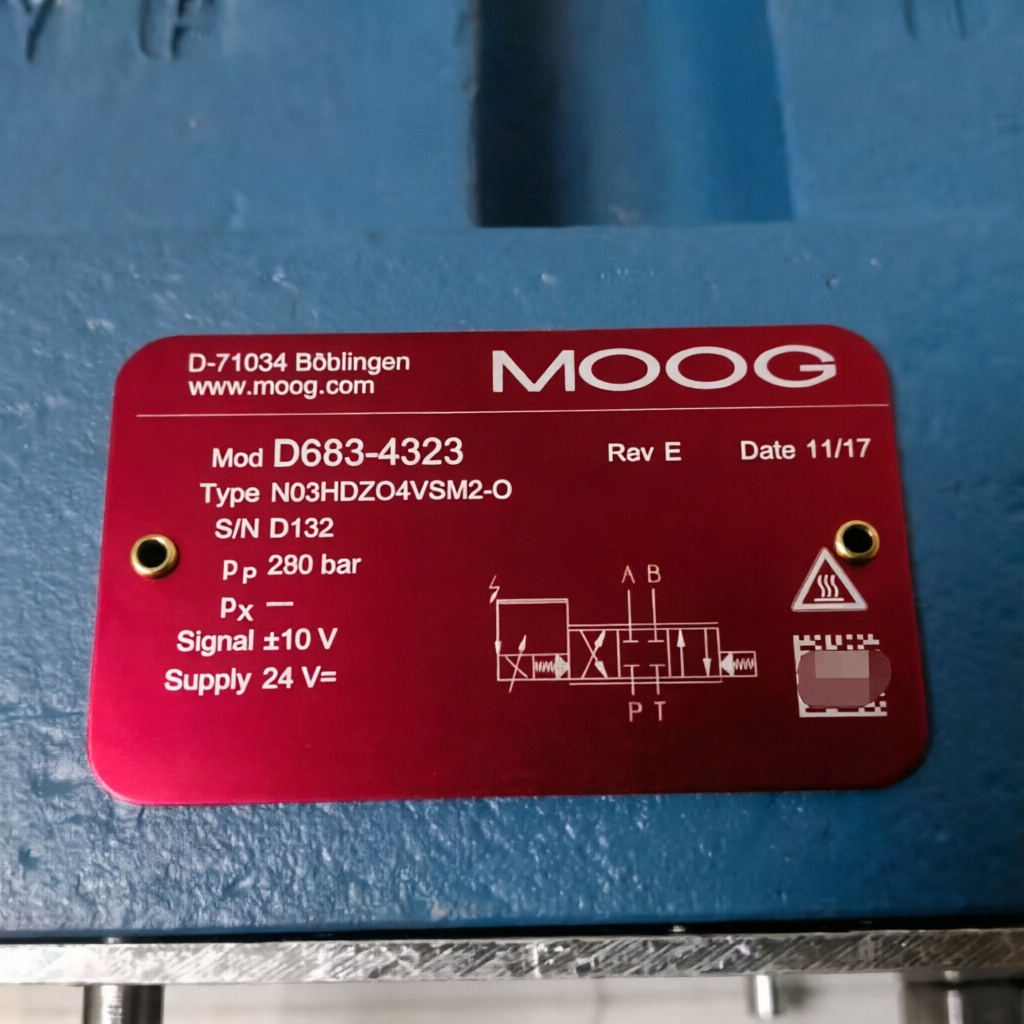

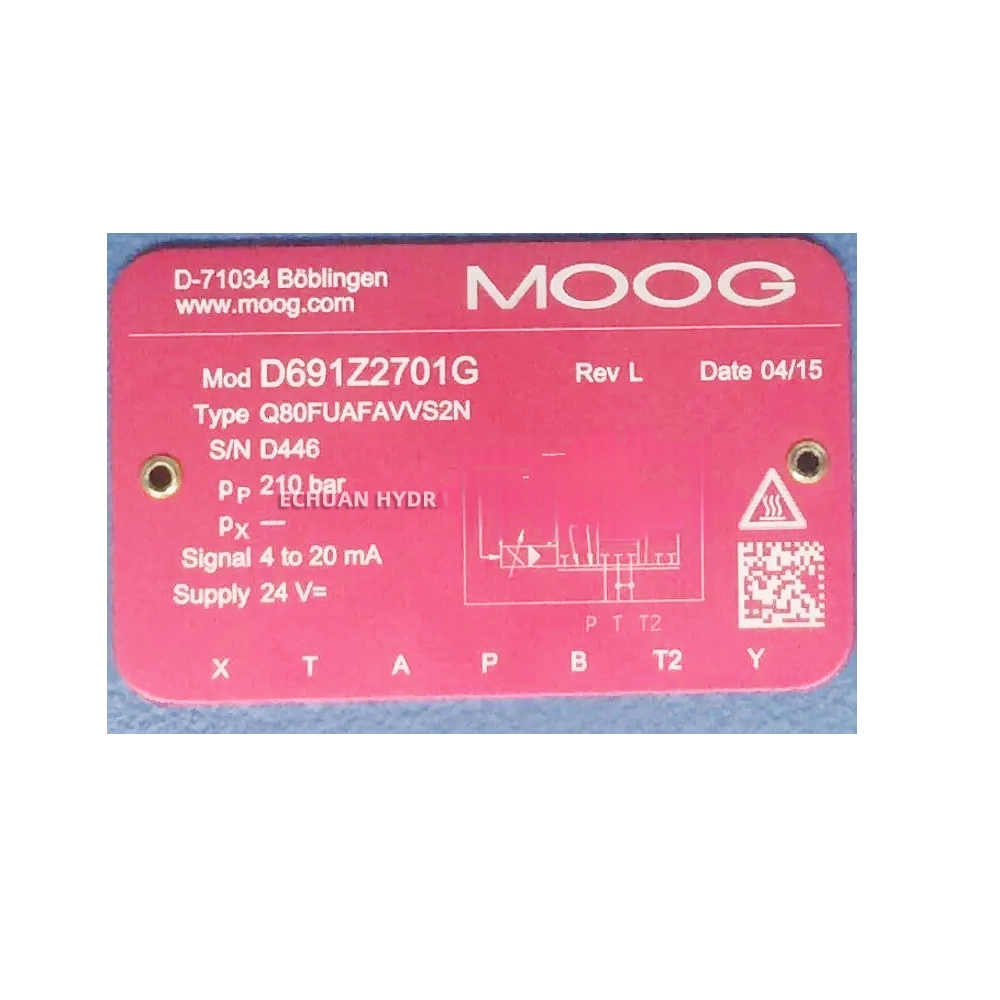

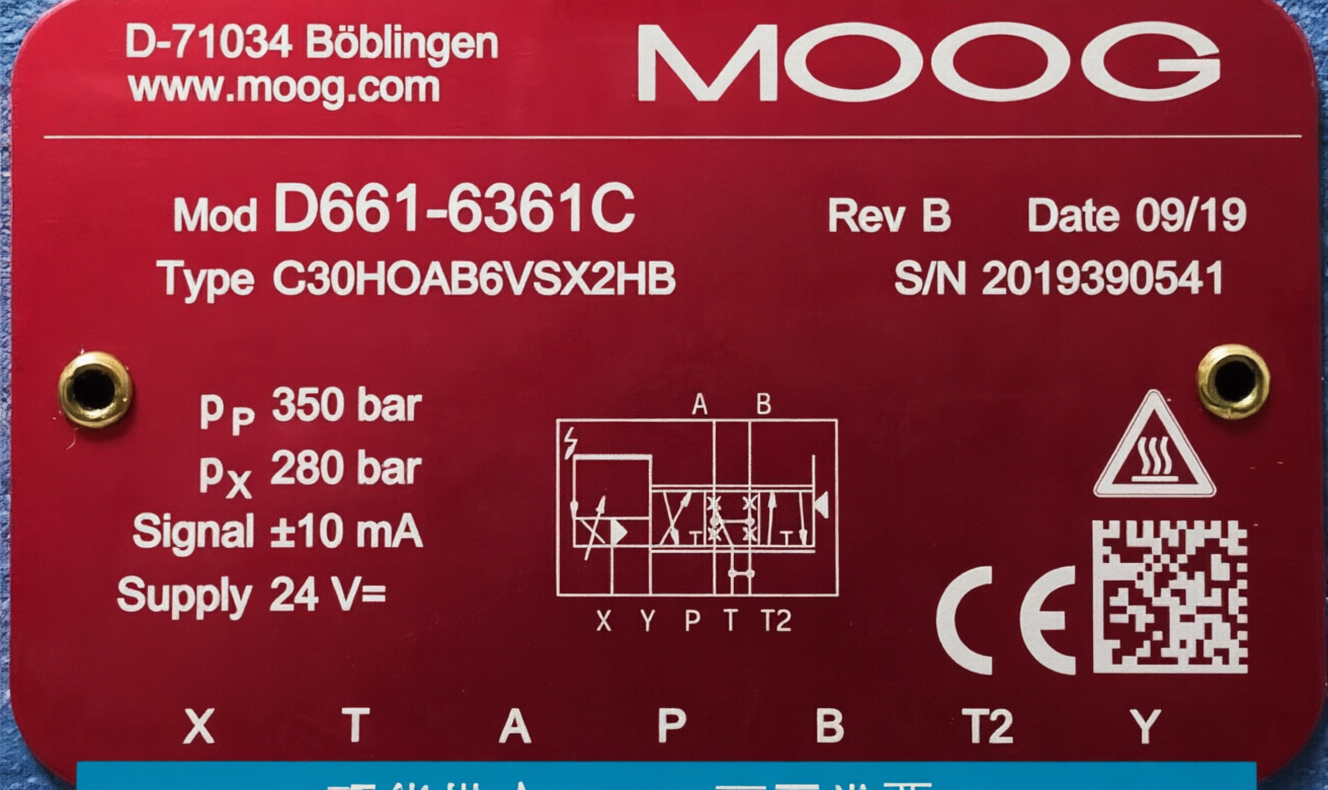

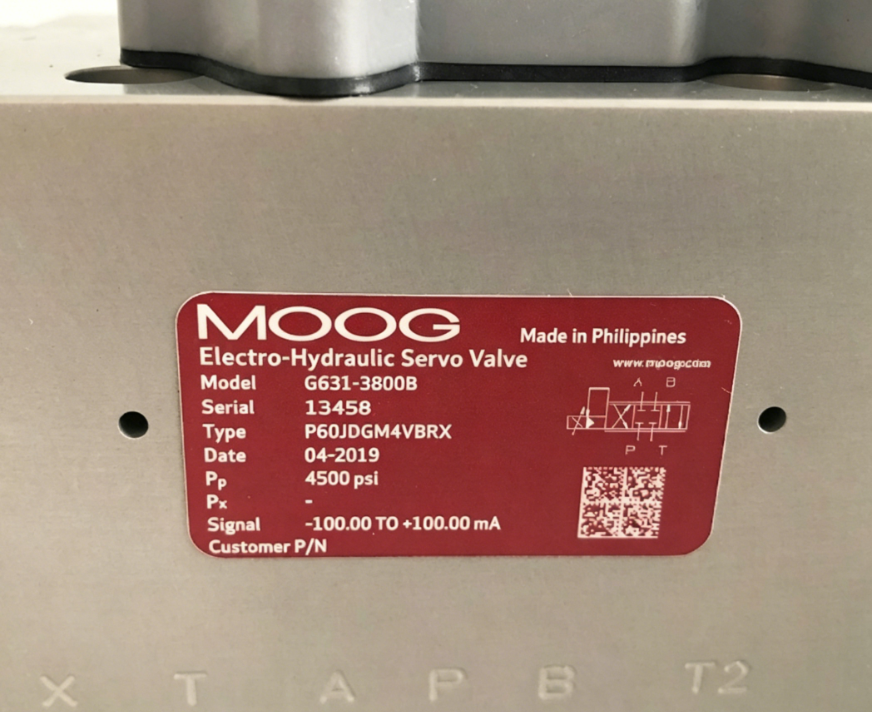

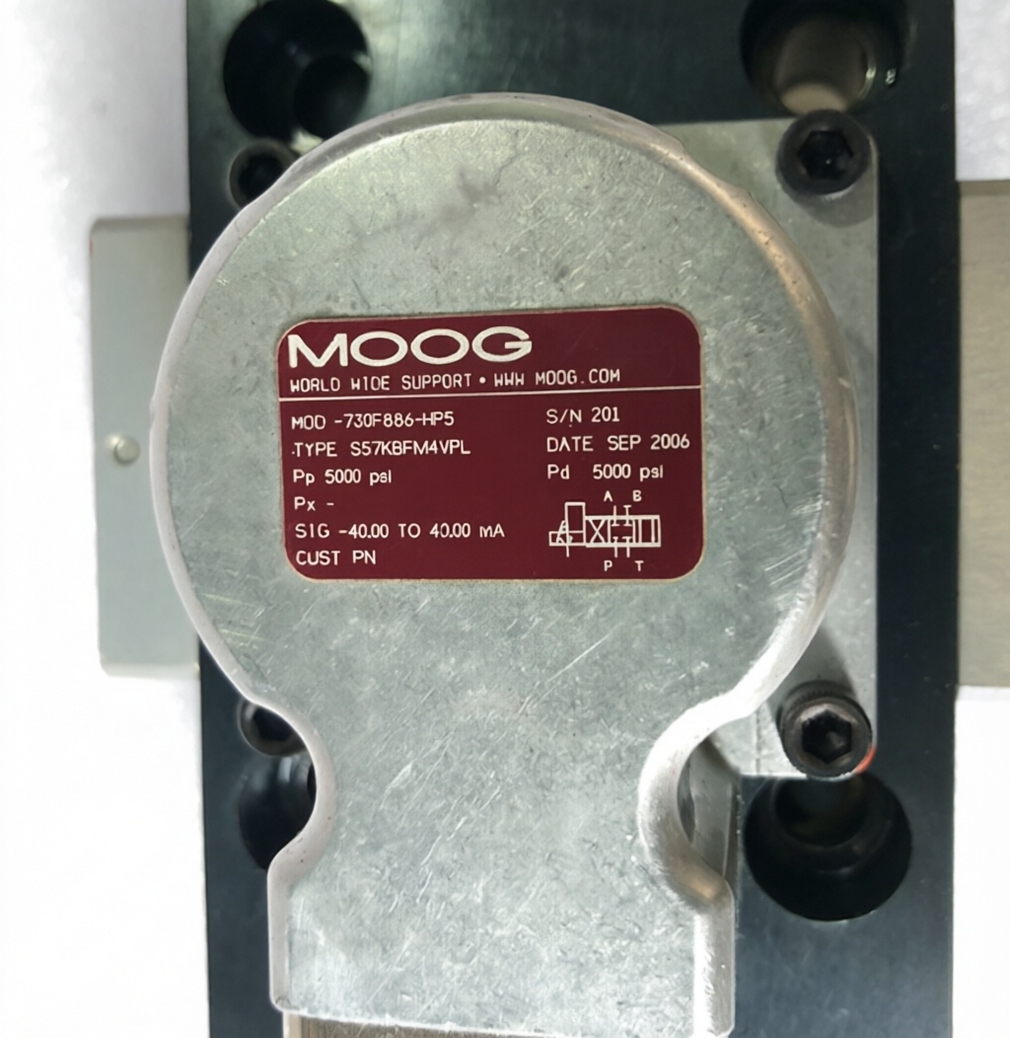

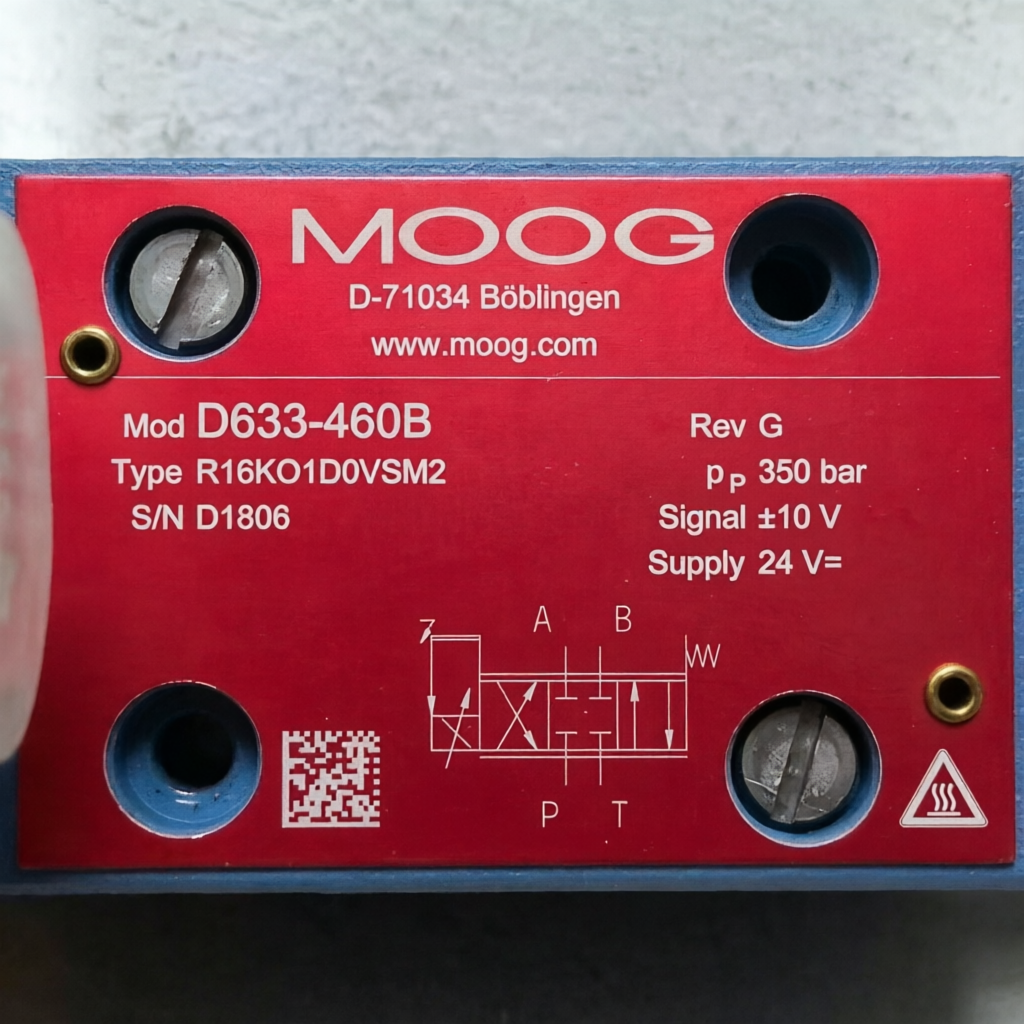

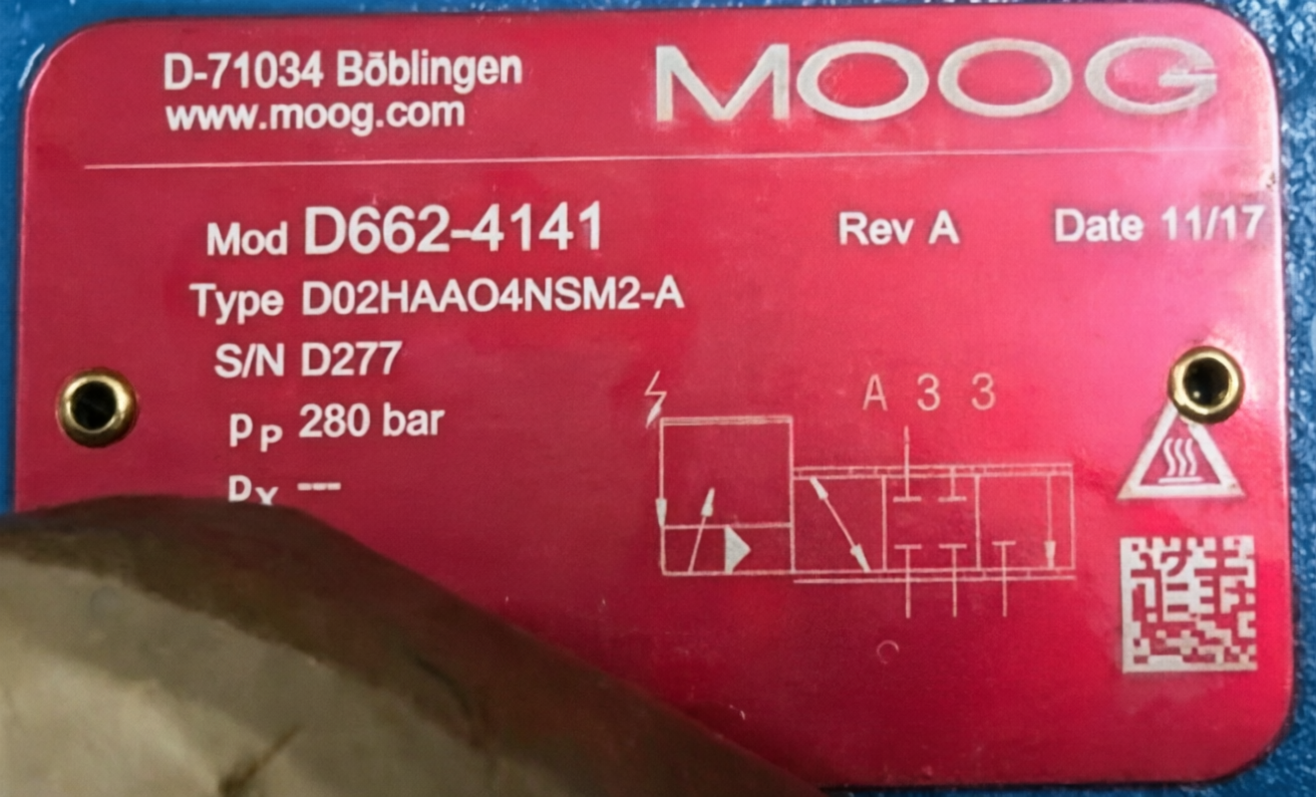

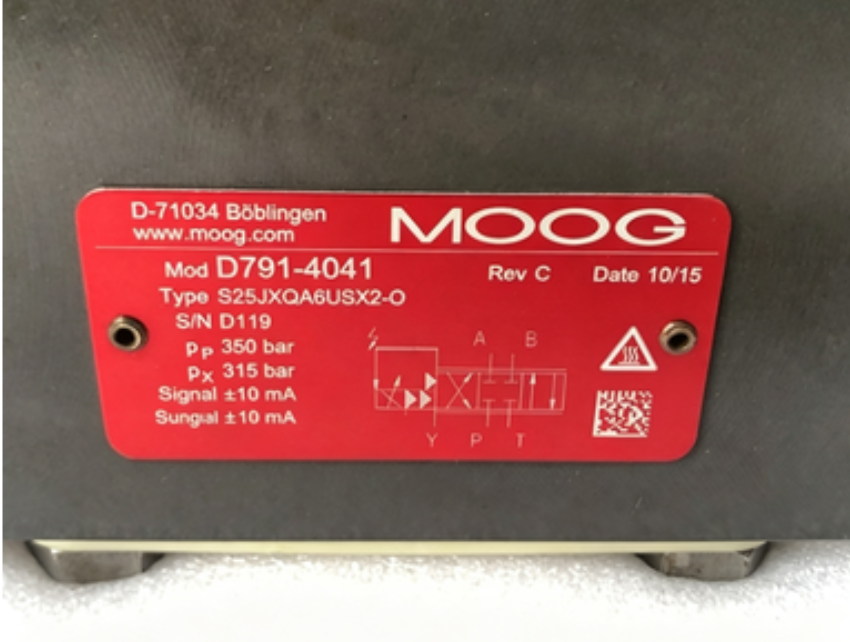

Therefore, before initiating your very first system startup, you must verify the exact fail-safe code on your valve’s nameplate. By doing so, you ensure that your machinery’s emergency shut-down behavior aligns perfectly with your plant’s operational safety protocols.
