| General Info | Product Series | Parker D41FC Series (Pilot-Operated Proportional Directional Control Valve) |

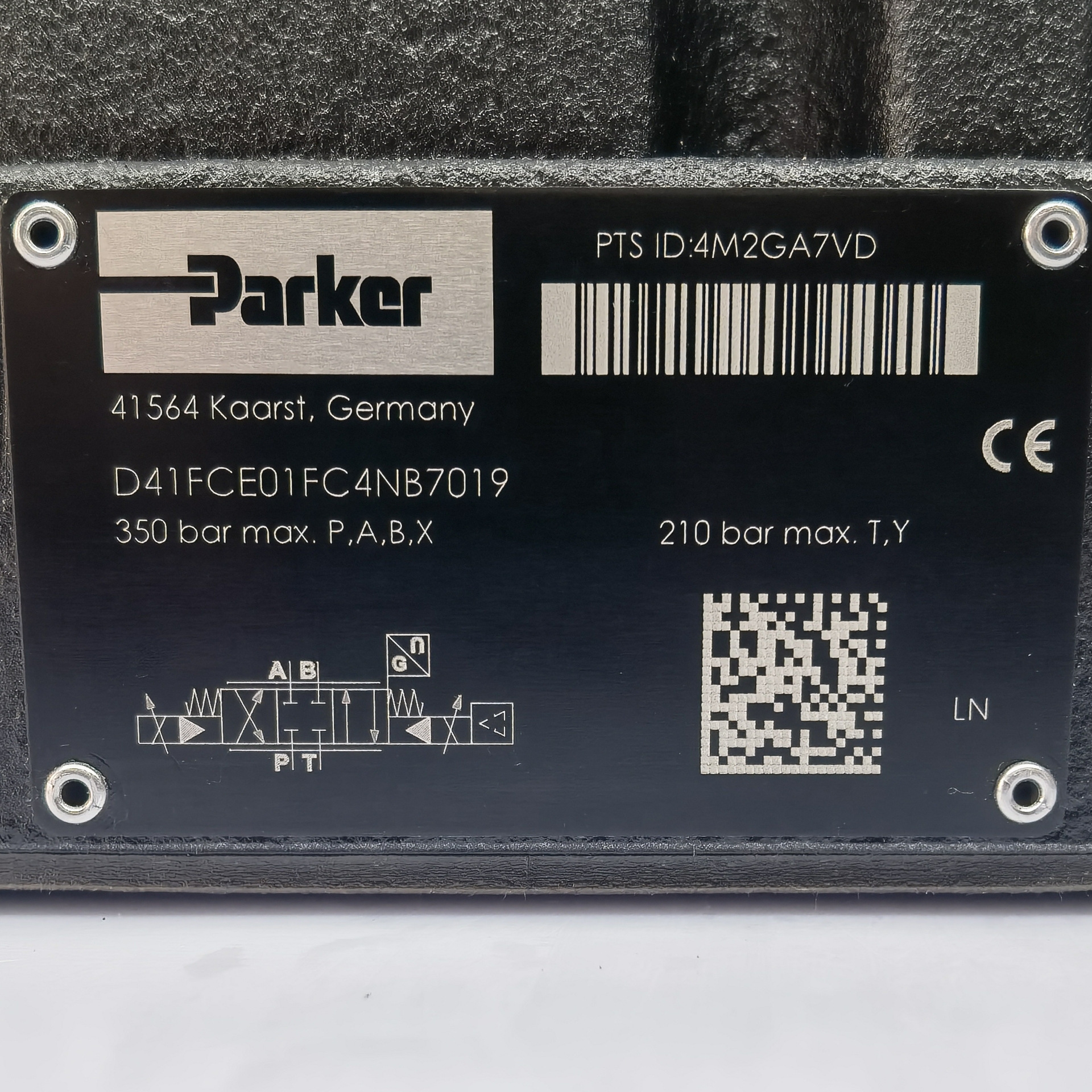

| Full Part Number | D41FCE01FC4NB7019 | |
| Size & Mounting | Nominal Size | NG16 (ISO 4401-07 / CETOP 07) |
| Mounting Pattern | Subplate mounting (requires NG16 interface) | |
| Hydraulic Performance | Valve Type | Pilot-operated proportional directional valve |
| Spool Type | E01 (Progressive flow characteristics, 0-type mid-position: all ports closed) | |
| Rated Flow | 100 L/min (at valve pressure drop Δp = 5 bar per metering edge) | |
| Max. Operating Pressure | 350 bar (Ports P, A, B); 185 bar (Port T) | |
| Pilot Pressure | Minimum 12 bar (required for proper pilot operation) | |
| Pilot Connection | Internal pilot oil supply, internal drain | |
| Electrical Characteristics | Control Type | Integrated Digital On-Board Electronics (OBE) |
| Supply Voltage | 24 VDC (typically ±15% tolerance) | |
| Command Signal | ±10 V (Analog voltage input) | |
| Electrical Connector | 6 + PE (Standard industrial connector) | |
| Material & Environment | Seal Material | NBR (Nitrile Rubber) (Standard for mineral oils) |
| Operating Temperature | -20°C to +60°C | |
| Fluid Type | Hydraulic oil per DIN 51524 … 535 | |
| Valve Body Material | Cast iron | |
| Special Features | Pilot Stage | Based on proven D1FB control valve pilot design |
| Main Stage | Main spool/sleeve design with LVDT position feedback for closed-loop control | |
| Flow Characteristics | Progressive (gradual) flow characteristics for sensitive flow adjustment | |
| Hysteresis | Low hysteresis for high repeatability | |
| Weight | 11.6 kg | |
| Special Notes | Custom Code (7019) | Specific Modification Number. May involve special zero-point settings, ramp times, specific flow curves, or proprietary test reports. |
D41FCE01FC4NB70 Parker // Parker, Proportional Valve
- About the Flow (Code F): In the Parker D41FC series, the letter
Findicates a specific flow rating. Based on the NG16 size and pilot-operated design, this valve has a maximum flow capacity of approximately 100 L/min at Δp = 5 bar per metering edge. This makes it suitable for medium industrial applications such as presses, injection molding machines, and machine tools. - About the Spool (Code E01): The
E01spool code provides progressive flow characteristics with a 0-type mid-position (all ports closed when de-energized). This allows for sensitive and gradual flow adjustment, ideal for applications requiring smooth acceleration and deceleration of actuators. - About the Pilot Connection (Code 4): The
4in the part number indicates internal pilot oil supply and internal drain. This means both the pilot oil supply and the pilot drain return to the tank internally through the main valve body. This configuration is used when the tank line backpressure is low and stable. - About the Seals (Code N): This valve uses NBR (Nitrile) seals, which are suitable for standard mineral-based hydraulic oils. If your system uses fire-resistant fluids or operates at high temperatures, you would need a valve with FKM (Viton) seals.
- About the Custom Code (7019): The
7019suffix indicates a factory-specific modification. This could involve special tuning of the PID parameters, specific ramp times, or unique flow characteristics tailored to a particular machine or application.- Replacement Advice: Do not replace it with a standard D41FC valve without the
7019suffix. The internal digital electronics and tuning parameters may not match your system, potentially causing instability, poor performance, or machine faults.
- Replacement Advice: Do not replace it with a standard D41FC valve without the
Original price was: $8,888.00.$4,785.00Current price is: $4,785.00.
