| Parameter | Code Segment | Detailed Specification |
|---|---|---|
| Product Series | D41FCE | Parker D41FCE Series Proportional Directional Valve |
| Nominal Size | 02 | NG16 (CETOP 7), indicating a 16mm nominal size port |
| Spool Type | F | Standard Spool Type (Specific flow curves depend on the “F” spool chart) |
| Fail-Safe Position | C | Spring Centered (Returns to neutral when de-energized) |
| Electronics | 1 | On-board Electronics (Integrated amplifier/controller) |
| Electrical Connection | V | EN 175301-803 Form A (Standard DIN 43650 connector) |
| Input Signal | B | 0 to 10 V Analog Input Signal |
| Supply Voltage | 0 | +24 V DC Supply Voltage |
| Special Options | 7019 | Factory-specific Design Series / Custom Option |

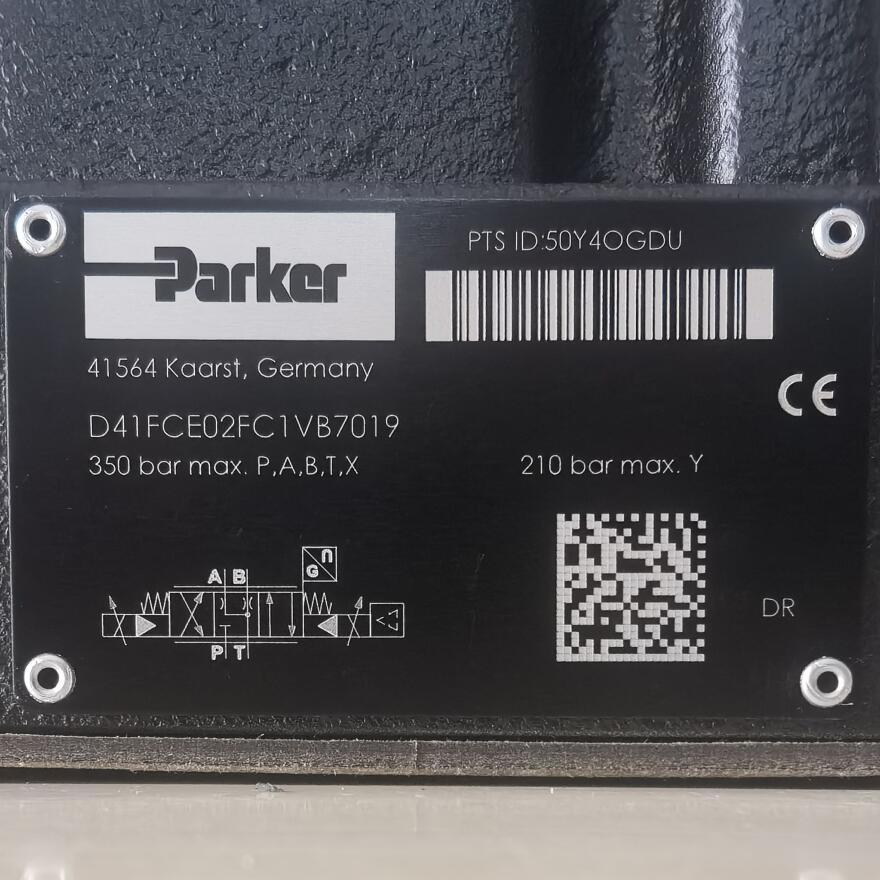

D41FCE02FC1VB70 Parker // Parker Proportional Valve
- Control Type: Electro-proportional directional valve with an integrated onboard amplifier.
- Operation: Controlled via a standard 0-10V analog signal and powered by 24V DC.
- Safety: The “Spring Centered” (Code C) design ensures the valve automatically returns to its neutral (safe) position in the event of a power failure.
- Seal Material: The FKM (Viton) seals provide excellent chemical resistance, making the valve suitable for standard hydraulic oils as well as phosphate ester fluids.
Original price was: $4,786.00.$3,628.00Current price is: $3,628.00.
