| Product Series | D41FHB | Parker D41FHB Series Proportional Directional Control Valve |
| Nominal Size | 32 | NG32 (CETOP 7), indicating a 32mm nominal size port |
| Spool Type | C1 | Standard Spool Type (Specific flow curves depend on the “C1” spool chart) |
| Electrical Connection | N | EN 175301-803 Form A (Standard DIN 43650 connector) |
| Electronics | B | On-board Electronics (Integrated amplifier/controller) |
| Input Signal | 0 | 0 to 10 V Analog Input Signal |
| Supply Voltage | 0 | +24 V DC Supply Voltage |
| Fail-Safe Position | 4 | Spring Centered (Returns to neutral when power is lost) |
| Seal Material | 8 | FKM (Viton) Seals (Compatible with standard mineral oils and HFD-R fluids) |
| Special Options | 0048 | Factory-specific Design Series / Custom Option |

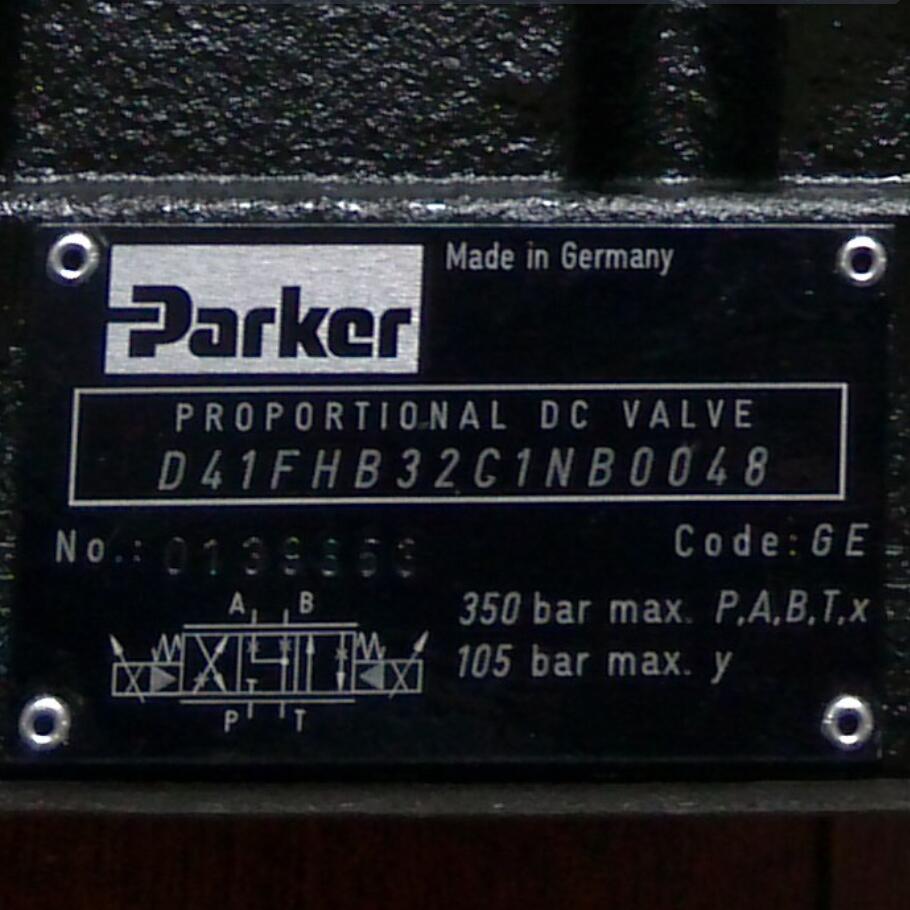

D41FHB32C1NB00 Parker Proportional Valve
- Control Type: Electro-proportional directional valve with an integrated onboard amplifier.
- Operation: Controlled via a standard 0-10V analog signal and powered by 24V DC.
- Safety: The “Spring Centered” (Code 4) design ensures the valve automatically returns to its neutral (safe) position in the event of a power failure.
- Compatibility: The FKM (Viton) seals provide excellent chemical resistance, making the valve suitable for standard hydraulic oils as well as phosphate ester fluids.
Original price was: $4,452.00.$3,367.00Current price is: $3,367.00.
