| Parameter Category | Technical Specifications |

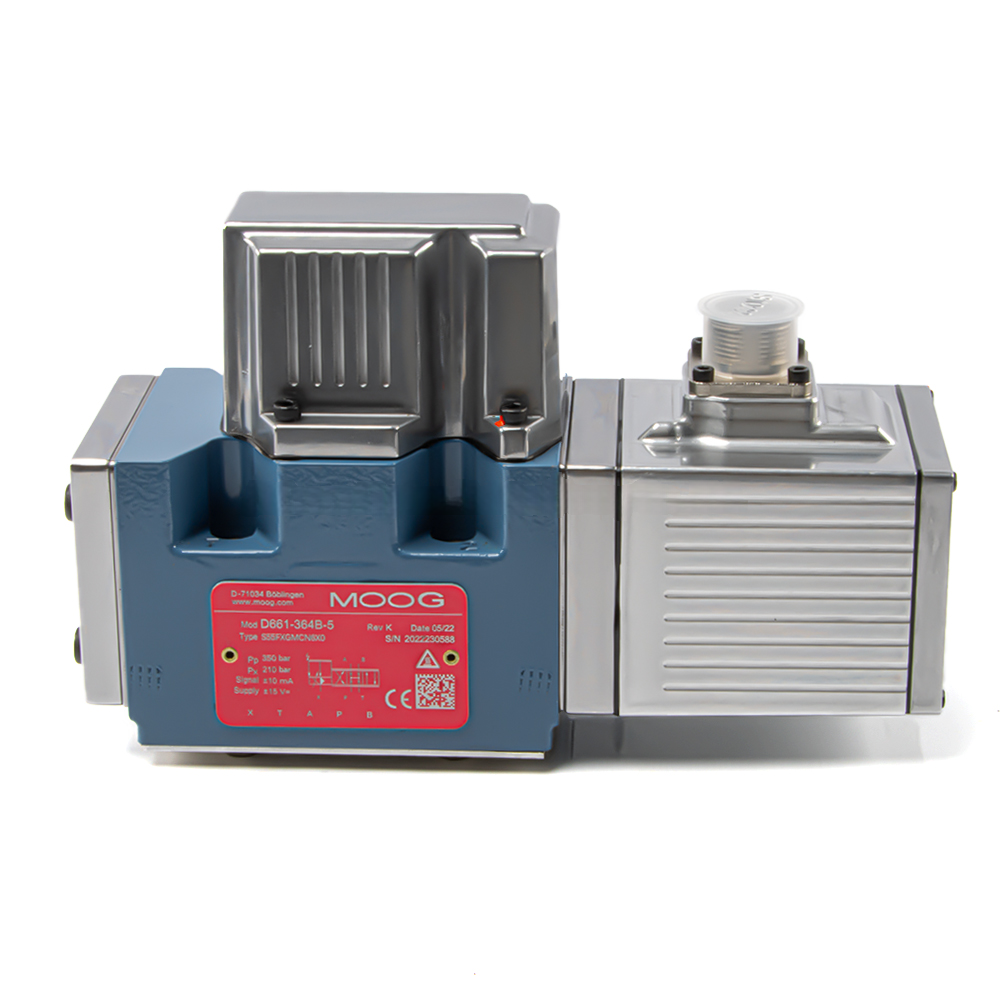

| Manufacturer / Series | Moog / D661 Series (2-Stage Pilot-Operated with ServoJet®) |
| Mounting Pattern | ISO 4401 Size 05 (NG10) |
| Maximum Operating Pressure |
Ports P, A, B: 350 bar (5,000 psi) Port T (Internal Y): 210 bar / Port T (External Y): 350 bar |
| Rated Flow Capacity | Up to 80 l/min at $\Delta p = 5 \text{ bar}$ per land (Maximum body flow capability up to 250 l/min) |
| Supply Voltage | 24 VDC (Operating range: 18 to 32 VDC) |
| Command Signal Options | $\pm 10\text{ V}$ or $4\text{ to }20\text{ mA}$ (Analog Interface via 6+PE connector) |
| Step Response Time (0-100%) | 6.5 to 18 ms (High dynamic response variant) |
| Recommended Cleanliness Class | ISO 4406 < 14/11 (For extended service life) or ISO 4406 < 16/13 (Normal) |
| Filter Rating Requirement | $\beta_{10} \ge 75$ ($10\ \mu\text{m}$ absolute filter) without bypass, mounted directly upstream |
| Operating Temperature Range |
Fluid: -20°C to +80°C (-4°F to +176°F) Ambient: -20°C to +60°C |
| Enclosure Protection Class | IP65 (with mating connector correctly installed) |
| Seal Material | NBR / FPM (Fluorocarbon standard options) |
