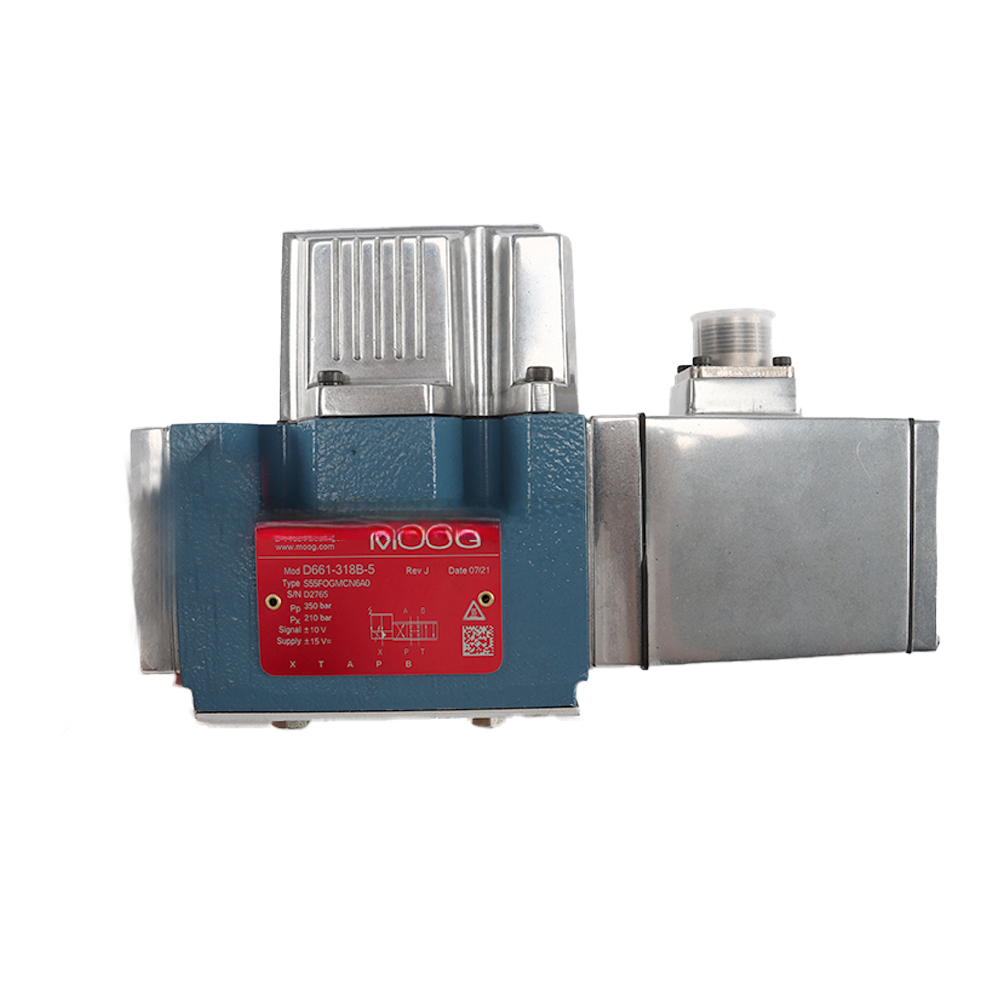

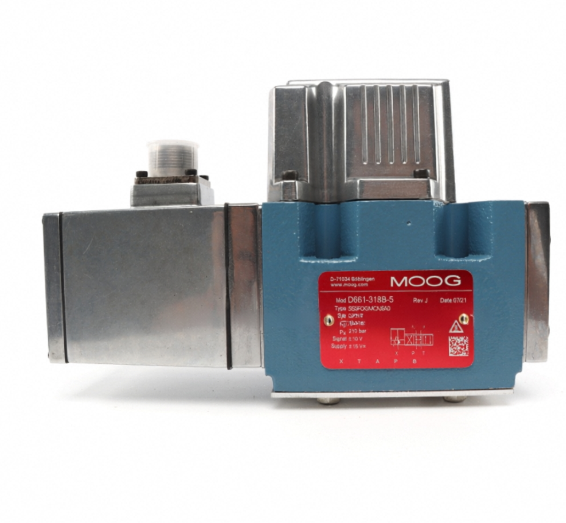

Typical Application Scenarios The D661-318B-5 is widely utilized in high-precision industrial automation where rapid acceleration and precise positioning are required. It is an industry standard for plastic injection molding (specifically for injection speed and pressure holding), blow molding machinery, and metal forming equipment. Because of the robust ServoJet® pilot stage, it is also highly effective in wood processing machinery and heavy-duty material testing rigs that operate under demanding high-cycle conditions.

Usage and Maintenance Precautions

• Superior Filtration: While the ServoJet® pilot stage is more debris-tolerant than nozzle-flapper designs, it still requires clean oil to prevent wear. Maintain a cleanliness level of ISO 4406 18/16/13 or better.

• Pilot Oil Requirements: Ensure the pilot pressure is stable. If the system pressure varies significantly, using an external pilot supply (Port X) is recommended to maintain consistent valve dynamics and prevent control oscillation.

• Cable Shielding: To protect the Integrated Electronics (OBE) from industrial noise, use shielded 6+PE or 11+PE connectors. The shield must be connected to the metal housing of the connector to ensure signal integrity.

• Mounting Surface Integrity: The mounting manifold must be ground to a flatness of 0.01 mm over 100 mm. Use high-tensile bolts (Class 12.9) to prevent manifold distortion, which can cause the internal spool to bind.
