Application Scenarios:

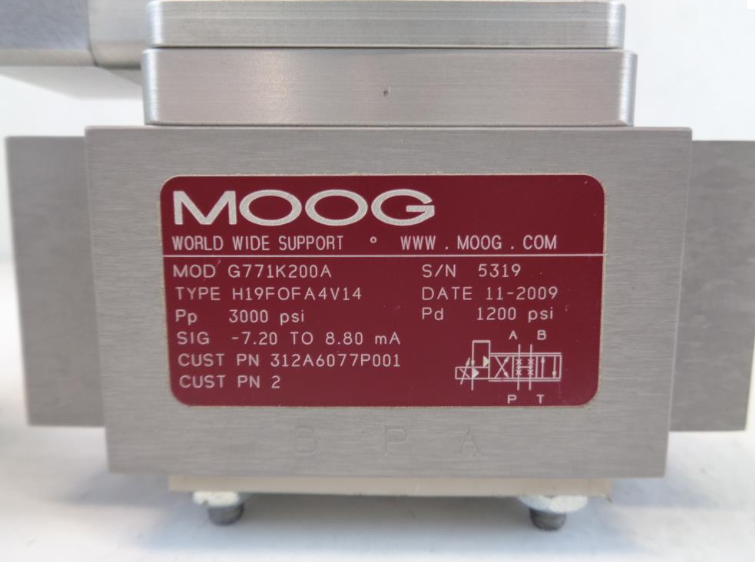

The G771K200A is engineered for high-accuracy closed-loop control of position, velocity, and force. It is widely utilized in sophisticated industrial machinery such as plastic injection molding machines, metal forming presses, multi-axis vibration simulators, and material testing rigs. Its robust design makes it a preferred choice for applications where high stability and consistent flow are required under varying dynamic loads.

Precautions for Use:

1. Hydraulic Fluid Cleanliness: The nozzle-flapper pilot stage is highly sensitive to microscopic debris. It is mandatory to maintain fluid cleanliness at ISO 4406 Code 14/11 or better to prevent clogging and erratic performance.

2. Filtration: A high-quality filter with a rating of $\beta_{10} \geq 75$ should be installed directly upstream. Do not use the servo valve itself to flush the system during initial startup.

3. Null Adjustment: This valve features a field-adjustable null bias. Use a 3/32″ hex key for adjustments and only perform this when the system is at normal operating temperature and pressure.

4. Manifold Preparation: The mounting surface must be flat within 0.05 mm (0.002 in) and have a surface finish of 0.8 $\mu$m (32 $\mu$in). Improper mounting can distort the internal bushing and lead to spool friction or failure.

5. Seal Compatibility: Ensure that the hydraulic fluid is compatible with Viton (FKM) seals. Some specialty or fire-resistant fluids may require alternative seal materials.
