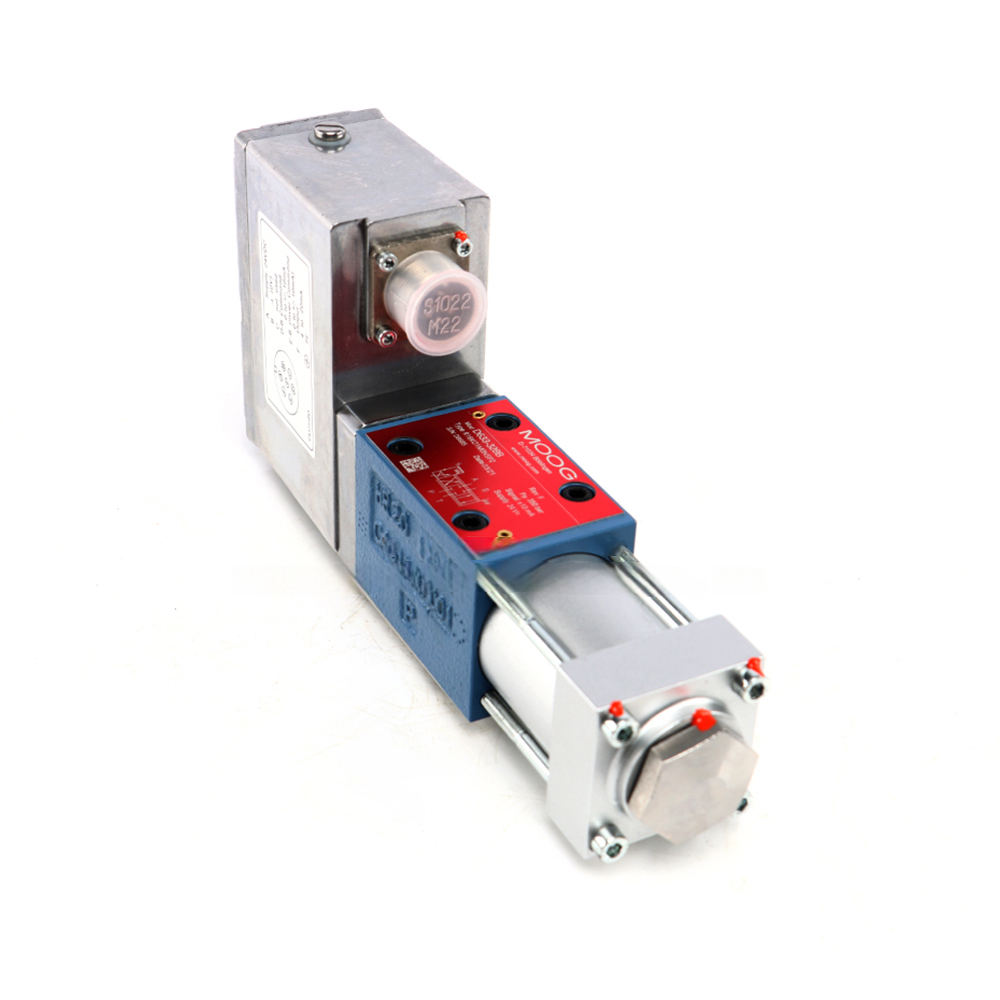

Application Scenarios: The Moog D633-328B is specifically engineered for high-precision closed-loop control of position, velocity, and pressure in demanding industrial environments. Due to its high rated flow (40 L/min) within a compact NG6 frame, it is a preferred choice for plastic injection molding machines, metal forming presses, high-speed robotic actuators, and material testing rigs. Because the spool is driven directly by a linear motor rather than a pilot stage, it is exceptionally robust against pressure fluctuations and is ideal for systems that require high dynamic response and consistent accuracy even at low operating pressures.

Precautions for Use:

1. Hydraulic Cleanliness: While the direct-drive design is more robust than pilot-operated valves, fluid purity remains critical to prevent abrasive wear on the precision-ground spool lands. Maintain a cleanliness class of ISO 4406 < 15/12/10 (NAS 6) and utilize a 10 μm absolute high-pressure filter directly upstream.

2. Electrical Grounding: To protect the integrated 24V electronics, always use shielded cables for command and feedback signals. Ensure the shield is connected to the connector housing to prevent electromagnetic interference (EMI) from causing signal jitter or “hunting.”

3. Signal Type Verification: Ensure your controller’s output matches the valve’s configuration (e.g., 4–20 mA vs. ±10 V). Using the incorrect signal type will result in a loss of control or potential damage to the input circuitry.

4. Flushing Protocols: Never install the valve until the hydraulic system has been thoroughly flushed. Assembly debris, such as metal shavings or welding slag, can score the bushing and spool, leading to internal leakage or mechanical sticking.

5. Thermal Management: Ensure the hydraulic fluid temperature is maintained between -20°C and +80°C. Operating outside this range can cause inconsistent response times or premature seal degradation.
